3M Reflective tape - Direct Source Australia

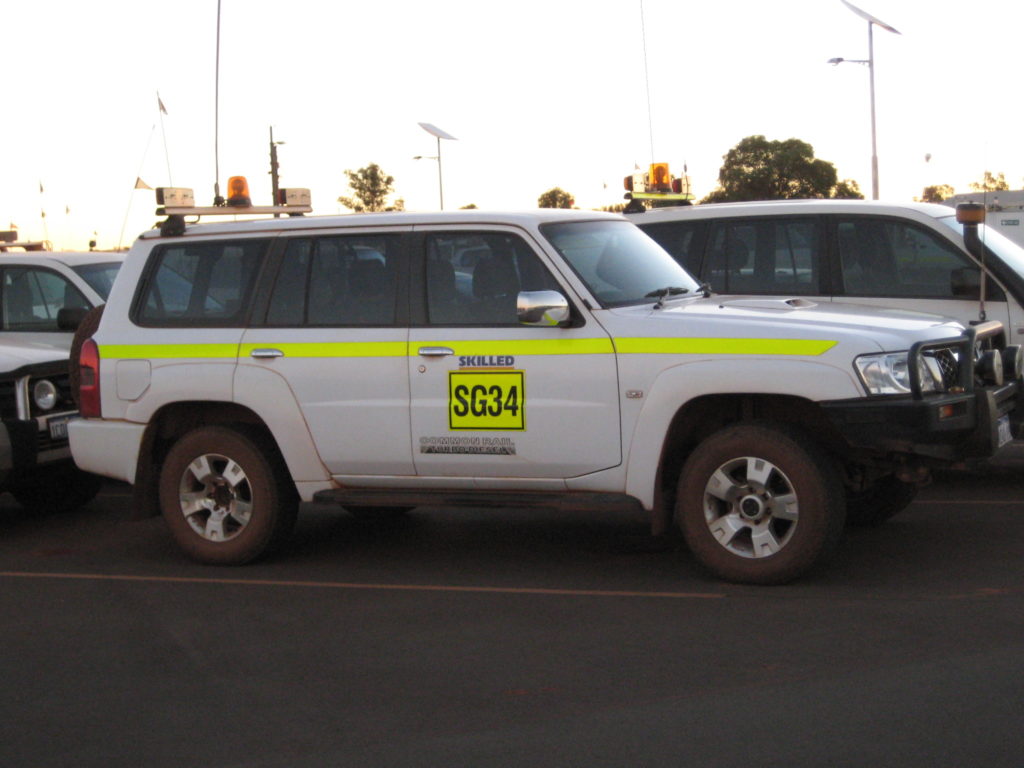

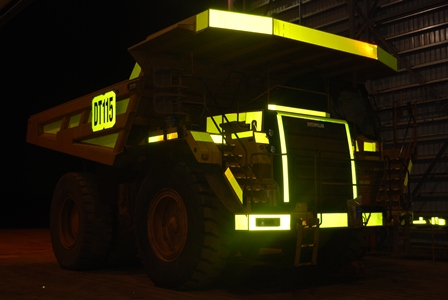

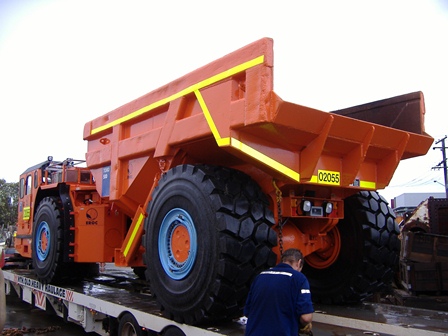

3M reflective tapes on mine site vehicles, trucks and equipment provides 24 hour visibility and safety.

High visibility retroreflective vehicle safety markings are an important element in the reduction of incident rates both on-site and while travelling on public roads.

Standards and classifications

We stock 3M products which exceed the requirements of the Australian Standard AS/NZS 1906.1:2007. Also in stock is a range which meet the European Union’s UN/ECE104 regulation. UN/ECE104 compliant products have markings which guarantee you of the highest performance product available. On some mine sites and civil construction sites these markings are compulsory.

Fluorescent colours

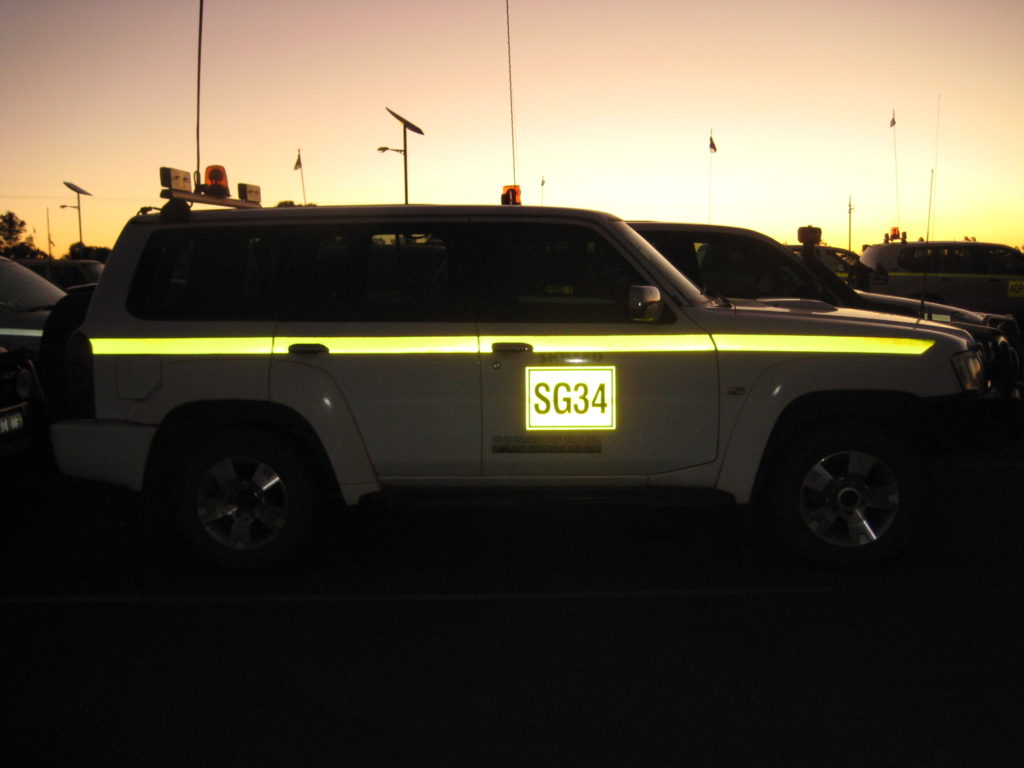

3M’s fluorescent tape products provide 24 hour visibility. Fluorescent tapes provide high visibility during daylight and especially at dawn – dusk. They also have equally high night time reflectivity as non fluorescent coloured tapes.

The importance of Edge Sealing

Most Class 1, 1A and 1W products are manufactured using prismatic technology. Edge sealing, or the use of a pre-edge sealed product, protects against the wear and tear from dirt and grime, also when subject to high pressure cleaning at acute angles.

For maximum product life, the use of edge sealed tapes is recommended in harsh environments.

Application

Correct surface preparation and application is the most important factor with adhesives. A ‘3M User Guide’ is provided with all reflective tapes and includes information on the application as well as care and maintenance to ensure you get the best durability and performance.

3M Diamond Grade 983ES Series (Edge Sealed) UN/ECE104 Mark Class 1A

Part no.	Description	Colour	Roll size
983-10ES-55	3M 983-10ES	White	55mm x 50 metre
983-71ES-55	3M 983-71ES	Yellow	55mm x 50 metre
983-21ES-55	3M 983-21ES	Fluorescent Yellow	55mm x 45.7 metre
983-72ES-55	3M 983-72ES	Red	55mm x 50 metre

3M Diamond Grade 983ES Series (Edge Sealed) Class 1A

Part no.	Description	Colour	Roll size
983-10ES-50-15	3M 983-10ES	White	50mm x 15 metre
983-10ES-50	3M 983-10ES	White	50mm x 45.7 metre
983-10ES-100-15	3M 983-10ES	White	100mm x 15 metre
983-10ES-100	3M 983-10ES	White	100mm x 45.7 metre
983-32ES-50	3M 983-32ES	Red/White	50mm x 45.7 metre
983-32ES-100	3M 983-32ES	Red/White	100mm x 45.7 metre
983-71ES-50	3M 983-71ES	Yellow	50mm x 45.7 metre
983-72ES-50-15	3M 983-72ES	Red	50mm x 15 metre
983-72ES-50	3M 983-72ES	Red	50mm x 45.7 metre
983-72ES-100-15	3M 983-72ES	Red	100mm x 15 metre
983-72ES-100	3M 983-72ES	Red	100mm x 45.7 metre

3M DG3 Diamond Grade 983-23ES Series (Edge Sealed) Class 1W

Part no.	Description	Colour	Roll size
983-23ES-50-15	3M DG3 Diamond Grade Edge Sealed	Fluorescent Yellow Green	50mm x 15 metre
983-23ES-50	3M DG3 Diamond Grade Edge Sealed	Fluorescent Yellow Green	50mm x 45.7 metre
983-23ES-75-15	3M DG3 Diamond Grade Edge Sealed	Fluorescent Yellow Green	75mm x 15 metre
983-23ES-75	3M DG3 Diamond Grade Edge Sealed	Fluorescent Yellow Green	75mm x 45.7 metre
983-23ES-100-15	3M DG3 Diamond Grade Edge Sealed	Fluorescent Yellow Green	100mm x 15 metre
983-23ES-100	3M DG3 Diamond Grade Edge Sealed	Fluorescent Yellow Green	100mm x 45.7 metre

3M DG3 Diamond Grade 4000 Series (Non Edge Sealed) Class 1W

Part no.	Description	Colour	Roll size
4083-25	3M 4083	Fluorescent Yellow Green	25mm x 45.7 metre
4083-50	3M 4083	Fluorescent Yellow Green	50mm x 45.7 metre
4083-75	3M 4083	Fluorescent Yellow Green	75mm x 45.7 metre
4084-50	3M 4084	Fluorescent Orange	50mm x 45.7 metre
4084-75	3M 4084	Fluorescent Orange	75mm x 45.7 metre

3M Engineer Grade 3200 Series Class 2

Part no.	Description	Colour	Roll size
3271-50	3M 3271	Yellow	50mm x 45.7 metre
3272-50	3M 3272	Red	50mm x 45.7 metre

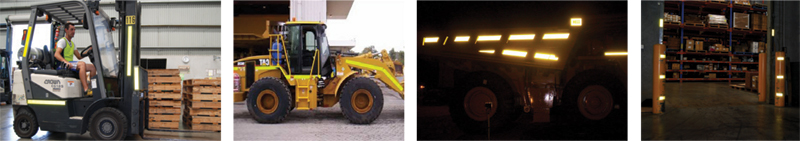

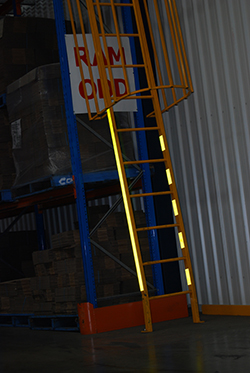

Workplace and site uses

High visibility reflective tapes can be used in the workplace or around sites to various surfaces. Static obstacles, door and entrance ways, anything that raises a collision or impact hazard for people, vehicles or other equipment.
